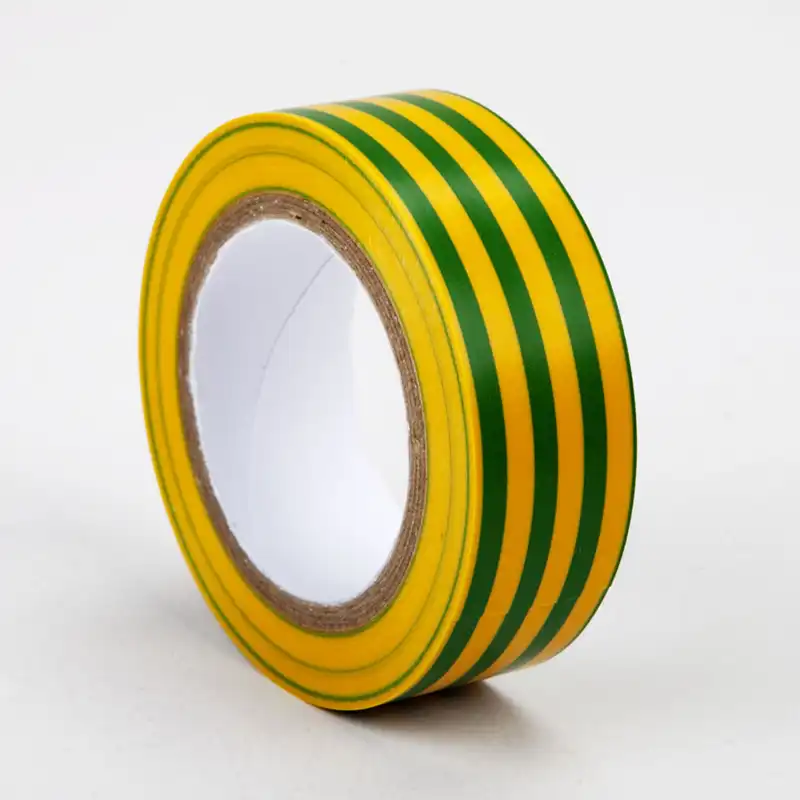

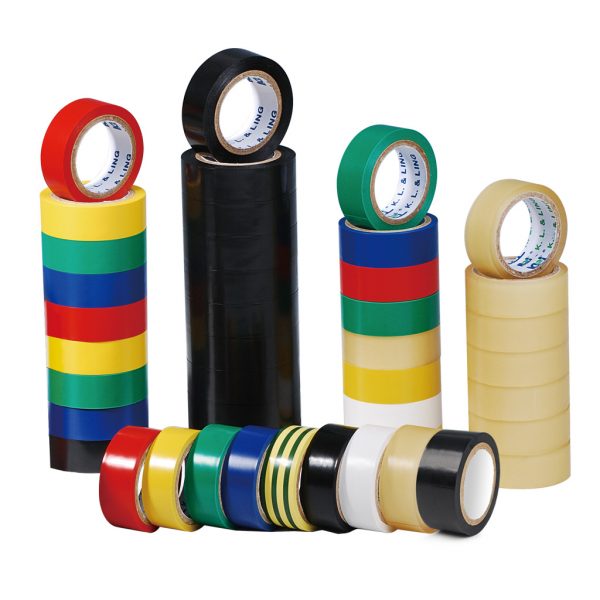

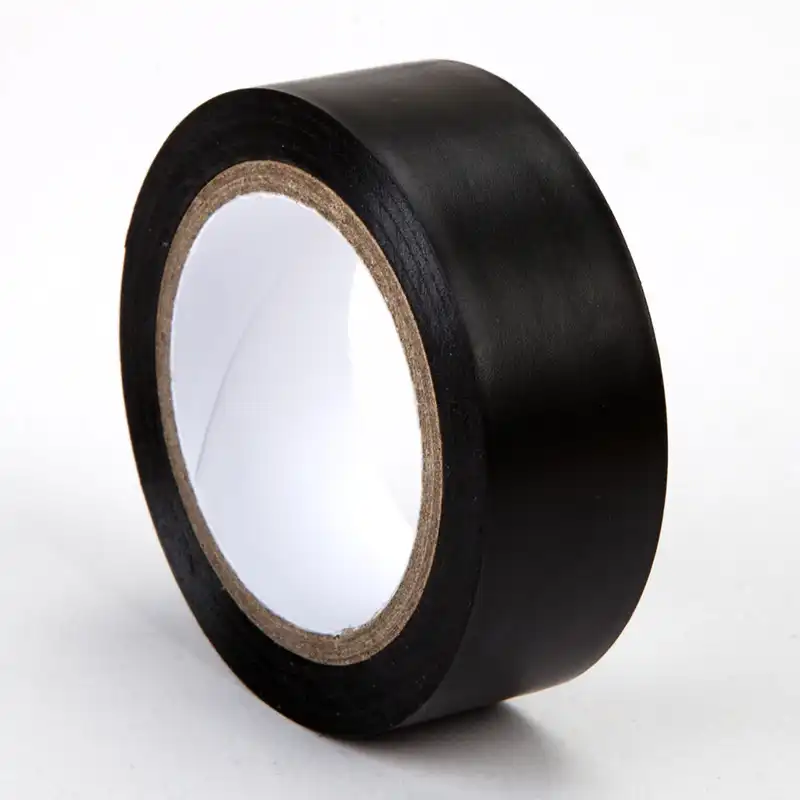

PVC Insulation Tape

PVC Insulation Tape is made from soft polyvinyl-chloride (spvc) as backing materials. Good insulation, high-voltage, flame retardant, and temperature resistance.

This tape is commonly used for insulating protection of electrical parts and wires. Widely used for manufacturing of automobile harness, anti-magnetic coil, household electrical equipment, refrigerator, electronic industry, etc.


» Electrical wire.
» Automobile harness and wire.
» Electronic industry.
Product Name PVC Insulation Tape PVC Insulation Tape
Item NO PIG01,PIB01 PIA01,PIY01,PI101,PI501
Backing Gloss PVC Film Matte PVC Film
Adhesive Rubber Based Rubber Based
Adhesion To Steel (N/In) >3.4 >3.4
Tensile Strength (N/In) >47; >69; >47; >45; >65; >65
Elongation (%) 150; 200 150; 150; 180; 180
Total Thickness (mm) 0.130±10%~0.190±10%

Packaging Way:
